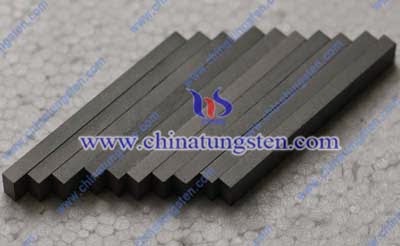

K35 Tungsten Carbide Bar Introduction

K35 tungsten carbide bar hardness of the alloy is not less than the hardness of 91.5 HRA, the bending strength of not less than 2200N/cm ². Density is about 14.5g/cm ³, mainly a mixture of tungsten carbide and cobalt powder metallurgy method adopted by milling, milling, pressing, sintering, and has good abrasion resistance and flexural strength. With WC amount in the range of 83% to 89%, the cobalt content is between 5% and 8%, the amount of titanium contained in the 0% to 1% plus or minus, containing tantalum amount ranging from 0% to 2% . Many long carbide is a material, primarily in a stripe shape. The main components of tungsten carbide and cobalt alloys, different uses ingredients of tungsten carbide long and cobalt are not consistent, the use of a very broad range.

K30 Tungsten Carbide Bar Composition and Characteristics

K30 tungsten carbide bar hardness of the alloy of the hardness of not less than 91.5HRA, flexural strength of not less than 2200N/cm², density is about 14.5g/cm³. Many long carbide is a material, primarily in a stripe shape. With WC amount in the range of 89% to 95%, the cobalt content is between 5% and 8%, the amount of titanium contained in the 0% to 1% plus or minus, containing tantalum amount ranging from 0% to 2% . The main components of tungsten carbide and cobalt alloys, different uses ingredients of tungsten carbide long and cobalt are not consistent, the use of a very broad range. Mainly by the use of tungsten carbide and cobalt powder metallurgy method by mixing flour, milling, pressing, sintering, and has good abrasion resistance and flexural strength.

K30 tungsten carbide bar has a hard carbide of high weldability, high hardness, high wear resistance characteristics when used should be suitable for the specific choice of the material alloy strip according to the purpose. Moderate hardness and high strength and good resistance to abrasion is to produce the best material carbide die.

K25 Tungsten Carbide Bar Introduction

K25 tungsten carbide bar hardness of not less than 91.5HRA, the bending strength of not less than 2200Mpa, density 14.5g/cm³. It has good abrasion resistance and flexural strength, mainly by the use of tungsten carbide and cobalt powder metallurgy method by mixing flour, milling, pressing, sintering. Tungsten carbide in an amount in the range of 89% to 97%, the cobalt content is between 5% and 8%, the amount of titanium contained in the 0-1% fluctuate tantalum amount ranging from 0% to 2% . The main components of tungsten carbide and cobalt alloys, different uses ingredients of tungsten carbide long and cobalt are not consistent, the use of a very broad range. Many long carbide is a material, primarily in a stripe shape.

Application of K20 Tungsten Carbide Bar

K20 tungsten carbide bar hardness of not less than 91.5HRA, the bending strength of not less than 1900MPa, the density is about 14.9g/cm ³. Mainly by the use of tungsten carbide bar and cobalt powder metallurgy method by mixing flour, milling, pressing, sintering, and has good abrasion resistance and flexural strength. Tungsten carbide volume containing between 83% and 89%, cobalt containing 5% to 8% in fluctuate titanium content of 0% to 1% range, with tantalum content in the range of 0% to 2% . The main components of tungsten carbide bar and cobalt alloys, different uses ingredients of tungsten carbide bar long and cobalt are not consistent, the use of a very broad range.

K20 tungsten carbide bar strip having high weldability, high hardness, high wear resistance characteristics, is used to do the cutting tool. Mainly used in the production and processing of solid wood, MDF, gray cast iron, non-ferrous materials, chilled cast iron, hardened steel, PCB, brake materials should be used in accordance with the specific purpose to choose the right material Carbide long.

K15 Tungsten Carbide Bar Performance Parameters

K15 tungsten carbide bar hardness of not less than 91.5HRA, density is about 14.9g/cm³, mainly a mixture of tungsten carbide and cobalt powder metallurgy method adopted by milling, milling, pressing, sintering, and has good resistance to wear resistance and flexural strength. Both a high wear resistance and toughness, flexural strength of not less than 2100HRA. With WC amount within the range of 90% to 96%, the cobalt content is between 4% and 7%, the amount of titanium contained in the 0-1 percent plus or minus, containing tantalum amount ranging from 0% to 2% . Ingredients for different purposes in the long carbide tungsten carbide bar and cobalt are not consistent, the main component of tungsten carbide bar and cobalt alloys, using a very broad range.

K12 Tungsten Carbide Bar Introduction

K12 tungsten carbide bar hardness of not less than 91.5HRA, has good wear resistance and stiffness. Mainly by the use of tungsten carbide bar and cobalt powder metallurgy method by mixing flour, milling, pressing, sintering, and has good abrasion resistance and flexural strength. Flexural strength of not less than 1900N/mm², density is about 14.9g/cm³, tungsten carbide bar in an amount in the range of 90% to 96%, the cobalt content is between 4% and 7%, the titanium content in the 0 % to 1% plus or minus, containing tantalum content from 0% to 2% range. The main components of tungsten carbide bar and cobalt alloys, using a very broad range, ingredients for different purposes in the long carbide tungsten carbide bar and cobalt are not consistent.

K10 Tungsten Carbide Bar Introduction

K10 tungsten carbide bar hardness of not less than 91.5HRA, flexural strength of not less than 1400N/mm ², density 14.6g/cm³ into 15.0g/cm³ range. Mainly by the use of tungsten carbide bar and cobalt powder metallurgy method by mixing flour, milling, pressing, sintering, and has good abrasion resistance and flexural strength. Tungsten carbide bar in an amount in the range of 84% to 90%, the cobalt content is between 4% and 7%, the amount of titanium contained in the 0% to 1% plus or minus, tantalum amount ranging from 0% to 2% . It uses a very broad range, mainly composed of tungsten carbide and cobalt alloys, different uses of the ingredients in the long carbide tungsten carbide bar and cobalt are not consistent.

K01 Tungsten Carbide Bar Introduction

K01 tungsten carbide bar hardness of not less than 92HRA, flexural strength of not less than 1320N/mm², density 14.6g/cm³ into 15.2g/cm ³ range. Mainly by the use of tungsten carbide and cobalt powder metallurgy method by mixing flour, milling, pressing, sintering, and has good abrasion resistance and flexural strength. Tungsten carbide in an amount in the range of 84% to 90%, the cobalt content is between 4% and 7%, the amount of titanium contained in the 0% to 1% plus or minus, tantalum amount ranging from 0% to 2% . It uses a very broad range, ingredients for different purposes carbide strip of tungsten carbide and cobalt are not consistent, the main component of tungsten carbide and cobalt alloys.

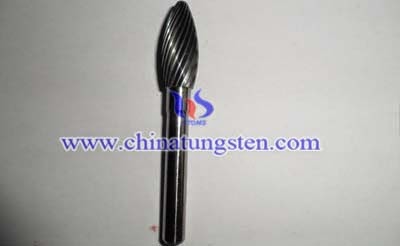

YT14 Tungsten Carbide Burrs Introduction

YT14 tungsten carbide burrs flexural strength of not less than 1200MPa, the hardness of not less than 90HRA. Density is about 11.2g/cm³ - 12.0g/cm³, suitable for processing carbon steel and alloy steel section on uneven among continuous cutting time roughing, semi-interrupted cutting it fine cars and fine cars, roughing continuous section of casting hole expansion drilling and rough expansion and so on. Tungsten carbide composition comprising between 69% ~ 92% between the cobalt-containing composition within the range of 5% to 10%, and containing 5% to 15% of the titanium component, comprising 0% to 15% range of the tantalum component. YT14 burrs durability than the small wheel durability can be improved by more than 50 times, various shapes can be used to finish the mold cavity.

Applications of YS2T Tungsten Carbide Burrs

Use of YT5 tungsten carbide burrs widely, all kinds of machinery parts chamfering, rounded, trenches and keyway; impeller parts of the light pipe cleaning; repair; the surface of the inner hole machining of mechanical parts. Insert the production process including die, die, turning several process steps, when using the tool holder is clamped to and note the handle can not stretch exactly in the fixture, lest fixture bottom uneven problem caused by concentricity is not positive. The special mould is hardmetal burrs.

YT5 Tungsten Carbide Burrs Introduction

YT5 tungsten carbide burrs strength not less than 89.5HRA, density ranged from 12.5 g / cm ² between 13.2g/cm ². Mainly for the role, including carbon steel and alloy steel forgings, stampings and castings skin when cutting uneven surface roughing, rough planing, semi-refined planing, rough milling and discontinuous surface rough milling and drilling and so on. Flexural strength of not less than 1430MPa, comprising 69% to 92% of the tungsten carbide component, a cobalt component comprising 5% to 10% range, the titanium-containing component is between 5% and 15% between 0% to 15 comprising % range tantalum ingredients. YT5 burrs can not only finishing a variety of metal mold cavity, you can also clean up the casting, forging, welding pieces flying edge, burr and weld.

YS30 Tungsten Carbide Burrs Precautions

YS30 tungsten carbide burrs inlay production process including die, Draft, turning several process steps, the tool must be used when the clip and note holder being clamped in the fixture can not be stretched in the end, so does the bottom of the fixture flat concentricity error caused a problem. Various mechanical parts chamfering, rounding, grooves and keyways processing; impeller track repair parts; clean pipes; inner bore surface finishing machinery parts; variety of metals and non-metallic craft carving.

YS30 Tungsten Carbide Burrs Introduction

YS30 tungsten carbide burrs hardness of not less than 91HRA, flexural strength of not less than 1800MPa, the density is about 12.45g/mm ³. Alloy ultrafine particles are primarily for large high efficiency milling work take the knife steel. Very versatile, especially alloy steel milling. Containing 69% to 92% of tungsten carbide component ranges, cobalt component comprising between 5% and 10% between the titanium component comprising from 5 to 15% within the range. YS30 tungsten carbide burrs is mainly used for hand-held pneumatic or electric tools driven, of course, can also be used on the machine. The time required to use rotary file folders are clamped. Only work at high cutting speeds can play excellent performance, it is recommended to use the spindle speed.

YS25 Tungsten Carbide Burrs Performance Parameters

Strength YS25 tungsten carbide burrs is not less than 91.0HRA, density is about 12.8 g / cm ³ -13.2g/cm ³. Mainly used in carbon steel, cast steel, high manganese steel, high strength steel and alloy steel roughing, milling, and planing and so on. Flexural strength of not less than 2000MPa, the amount of tungsten carbide containing 69% to 92%, and the cobalt content is between 5% and 10%, the titanium content of 5% to 15%, containing tantalum in an amount of 0% to within the range of 15%. YS25 fitter mechanized rotary file is an indispensable tool, it's extremely versatile, especially more significant in the aviation, marine, automotive, machinery, chemicals and other industrial sectors results. Can be used for machining cast iron, cast steel, carbon steel, alloy steel, stainless steel, hardened steel, copper and aluminum.

YS2T Tungsten Carbide Burrs Introduction

YS2T tungsten carbide burrs hardness of not less than 91.5 HRA, alloys belonging to ultrafine particles, mainly for low-speed rough turning, milling heat-resistant alloys and titanium, for cutters and taps, blade cutter better. Flexural strength of not less than 2200MPa, between 14.4g/cm³ -14.6g/cm³ density ranging, including the amount of tungsten in the range of 83-89%, the cobalt content of 5% and 8%, plus or minus, with titanium content of 0% to 1% range, with tantalum content of 0% to 2%. YS2T burrs can not only use it to process a variety of metal materials processing ≤ HRC65 also hardened steel can be replaced by small emery wheels and there is no dust pollution. Its production efficiency than using hand tools can improve several times.

YL10.1 Tungsten Carbide Burrs Introduction

YL10.1 tungsten carbide burrs hardness of not less than 91.5HRA, density is about 14.9g/cm ³, has good wear resistance and bending strength, mainly suitable for the production of extruded bars, suitable for general drill , tools and other wear parts. Has a high wear resistance and toughness, flexural strength of not less than 1900MPa. Containing tungsten carbide volume 90% to 96%, and cobalt content between 4% and 7%, titanium content of 0% to 1%, containing tantalum content in the range of 0% to 2%. YL10.1 burrs just have not less than HRC60 cutting hardness but also has high wear resistance, high efficiency, wide range of applications and housing characteristics of dust pollution, according to the national standard production model specifications tungsten carbide burrs.

YK15 Tungsten Carbide Burrs Introduction

YK15 tungsten carbide burrs hardness of not less than 91HRA, density of 14.2g/cm² - 14.6g/cm² within the scope mainly suitable for the processing of solid carbide drills, cutters, and overall the whole hard rigid reamer and other tools. Has a high wear resistance and toughness, flexural strength of not less than 2100MPa, the amount of tungsten carbide containing 90% to 96%, the cobalt content was 4% to 7%, the titanium content is 0% to 1% ranging tantalum content in the range of 0% to 2%. YK15 burrs wide range of uses, including the production process dies, draft, turning several process steps. Commonly used in various mechanical parts chamfering, rounding, trenches and Keyway; impeller repair parts of the track; clean pipes; finishing machinery parts bore surface and so on.

YG10X Tungsten Carbide Burrs Performance Parameters

YG10X tungsten carbide burrs hardness of not less than 91.5 HRA, YG10X and K25 tungsten carbide burrs with the same tungsten carbide burrs has good wear resistance and bending strength, mainly used for the production of extruded bars, making small diameter micro-drill, watches processing tools, reamers and other cutting tools overall and wear parts. Flexural strength of not less than 2200MPa, the density is about 14.5g/cm ³, tungsten carbide volume containing 89% to 95% range, the amount of cobalt in the range of 5% to 8%, titanium content of 0% to 1 % range, with tantalum content of 0% to 2% range. YG10X After burrs 100% weld strength test, the protection of the operator's safety; blade section geometry designed, cutting sharp and efficient, stable and smooth.

YG8N Tungsten Carbide Burrs Introduction

YG8N tungsten carbide burrs hardness of not less than 91.5 HRA, belonging to ultrafine particles alloys. Mainly for low-speed rough turning, milling heat-resistant alloys and titanium, for better cutters and taps, blade cutter effect. Flexural strength of not less than 2200MPa, about 14.4g/ cm³ to the range 14.6g/cm³, the amount of tungsten containing 83% to 89% cobalt content of between 5% to 8%, titanium content is 0% to 1% range, with tantalum content in the range of 0% to 2%. Under normal circumstances YG8N tunngsten carbide burrs is also known as high-speed assorted cutters, carbide die cutters, etc., under normal circumstances with high-speed electric grinder or supporting the use of pneumatic tools. You can finish cleaning up all kinds of metal mold cavity and casting, fly forging, welding parts, burrs and weld.

YG6A Tungsten Carbide Burrs Introduction

YG6A tungsten carbide burrs mainly for hard cast iron, semi-finished non-ferrous metals and their alloys and can also apply to high manganese steel, hardened steel, alloy steel, semi-finishing and finishing. Hardness of not less than 91.5HRA. Density of between 14.6g/cm - 15.0g/cm³, a bending strength of about 1370MPa. Under normal circumstances YG6A burrs carbide is also known as high-speed assorted cutters, carbide die cutters, etc., under normal circumstances with high-speed electric grinder or supporting the use of pneumatic tools. Not only can finish all kinds of metal mold cavity, you can also clean up the casting, forging, welding pieces of flash, burrs and weld. Excellent corrosion resistance and wear performance, a variety of sizes to choose from in favor of cost savings.

P40 Tungsten Carbide Burrs Introduction

P40 tungsten carbide burrs strength not less than 91.0HRA, density is about 12.8g / cm² -13.2g/cm². Mainly used in carbon steel, cast steel, high manganese steel, high strength steel and alloy steel roughing, milling, and planing and so on. Flexural strength of not less than 2000N/cm², tungsten carbide in an amount in the range of 75-98%, the cobalt content in the range of 5-10%, the tantalum content is in the range of 0-15%, carbon content in the range of 6-9% of. P40 tungsten carbide burrs using quality materials, high wear resistance and long life; through high-quality fine diamond wheel grinding, sharp edge, finish; using advanced CNC machining equipment to ensure the stability of quality and consistency.

P30 Tungsten Carbide Burrs Introduction

P30 tungsten carbide burrs strength not less than 89.5HRA, density is about 12.5g / cm³. In recent years has been gradually promote the use of such a tool in our for Carbon and Alloy Steel including roughing forgings, stampings and castings uneven skin surface during cutting, rough planing, semi-refined planing, rough milling and non-continuous surface rough milling and drilling and similar automobile engine factory impeller repair parts of the track. Bending strength low 1430N/mm ², between the amount of tungsten carbide containing 69% to 92%, the cobalt content is between 5% to 10%, the titanium content is between 5% to 15%, containing tantalum content between 0% to 15%. P30 burrs in the country also known as tungsten steel grinding, Carbide, alloy rotary file and so on.
